Rotator

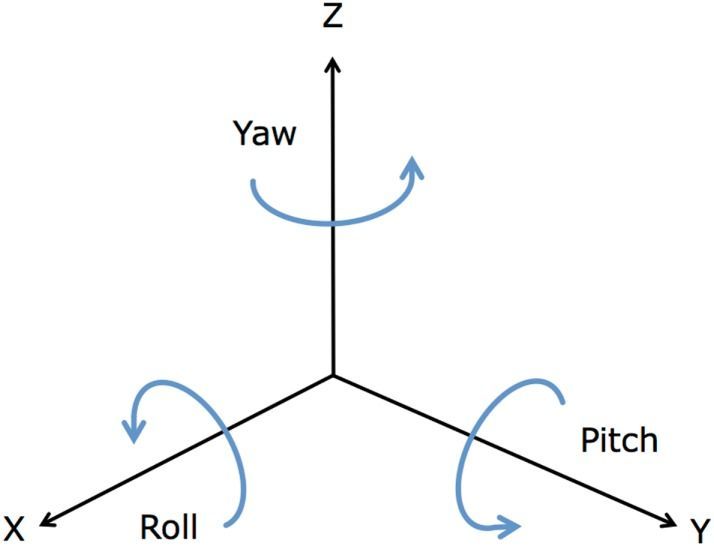

This tool rotates the $L^\text{th}$ degree Ambisonic scene around the $z$-axis (yaw angle), $y$-axis (pitch angle) and $x$-axis (roll angle),
according to Fig.1. Driven with OSC from head-tracking signals, this tool can compensate the head rotations during binaural playback. Implementation according to 1 with corrections.
Compilation parameters
L: maximal Spherical Harmonics degree (i.e., Ambisonics order, $L > 0$)
Inputs / Outputs
- Inputs: $(L+1)^2$
- Outputs: $(L+1)^2$
User Interface
| Element | OSC | Min value | Max value |
|---|---|---|---|
| Yaw angle ($^\circ$) | yaw |
-180 | 180 |
| Pitch angle ($^\circ$) | pitch |
-180 | 180 |
| Roll angle ($^\circ$) | roll |
-180 | 180 |
-
J. Ivanic and K. Ruedenberg, “Rotation matrices for real spherical harmonics. Direct determination by recursion,” J. Phys. Chem., vol. 100, no. 15, pp. 6342–6347, 1996. ↩
